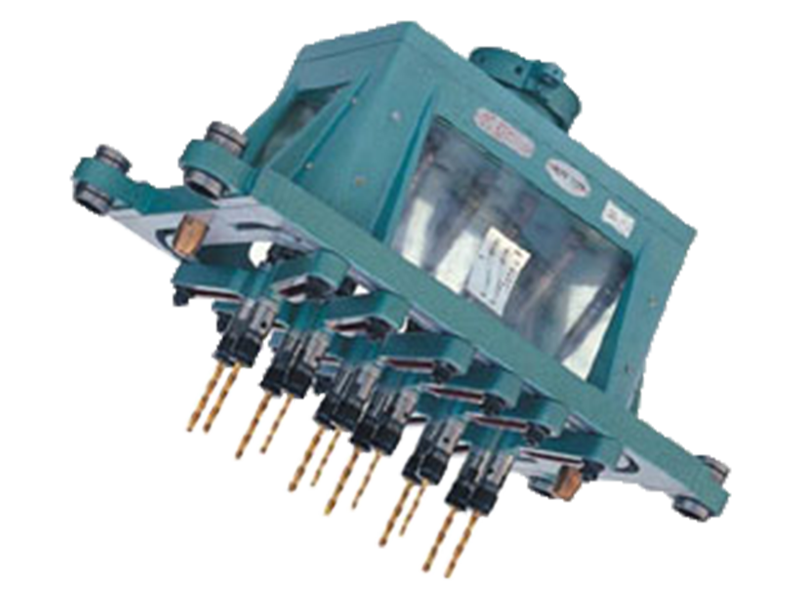

The structure of the square shaft multi-spindle tool is the same as the structure of the round shaft multi-spindle tool. This multi-spindle tool is suitable for the straight line or the rectangular working hole. When using, don't move too much to reduce the lifetime of the cardan joint. The usage is also the same as the round shaft one. (We will design the structure of gear case, that is, the position of the boring hole as much as possible according to the coordinate of per hole.)
※Note of cardan joint
1. Do not set the angle to more than the specified 15 degrees.
2. If the limit is exceeded, the shaft will be easy to wear or break.
3. During work, lubrication should be added frequently.
Type | SU100x165 | SU120x200 | SU120x300 | SU160x450 | SU220x360 | SU250x500 | SU170X200 | SU300X400 | SU400X550 | SU450X550 | SU150X800 | SU300X1000 |
Collet/ Max.Drilling Capacity | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 |
| Gear Ratio | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 |
Lowest Distance(Two Spindle) | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 |
Max.Range of Centers | 100x165 | 120x200 | 120x300 | 160x450 | 220x360 | 250x500 | 170X200 | 300X400 | 400X550 | 450X550 | 150X800 | 300X1000 |
Spindle | 2-8 | 2-12 | 4-16 | 4-16 | 6-14 | 4-18 | 2-12 | 4-16 | 4-18 | 4-18 | 4-18 | 4-18 |
